| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO9001/ISO14001/OHSAS18001/CCC/CE |
| Minimum Order Quantity: | 1000m |
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 15-20 working days or Negotiation |
| Payment Terms: | T/T, L/C, D/P, West Union, Paypal, Secure Payments |
| Supply Ability: | 10 kilometer/ day |

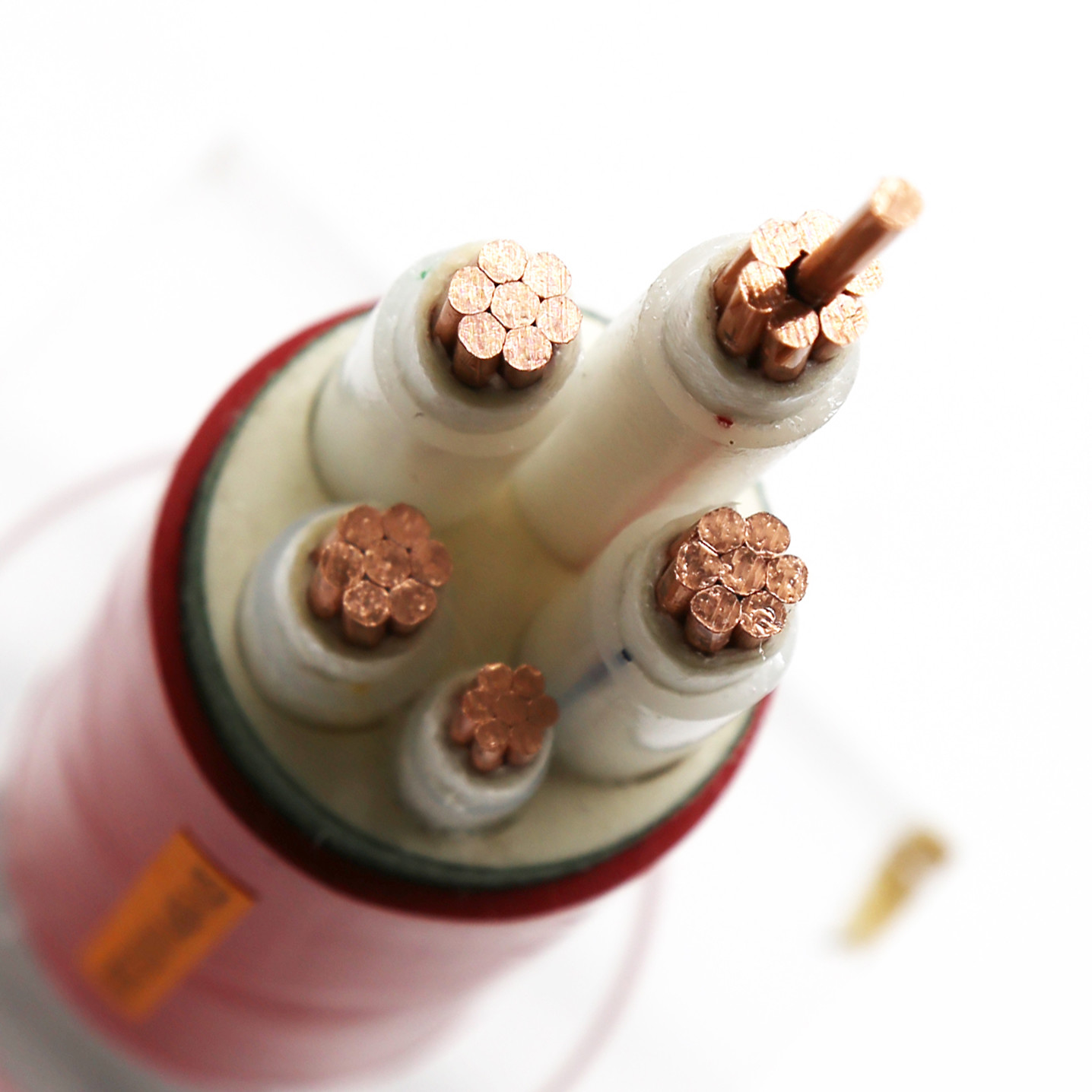

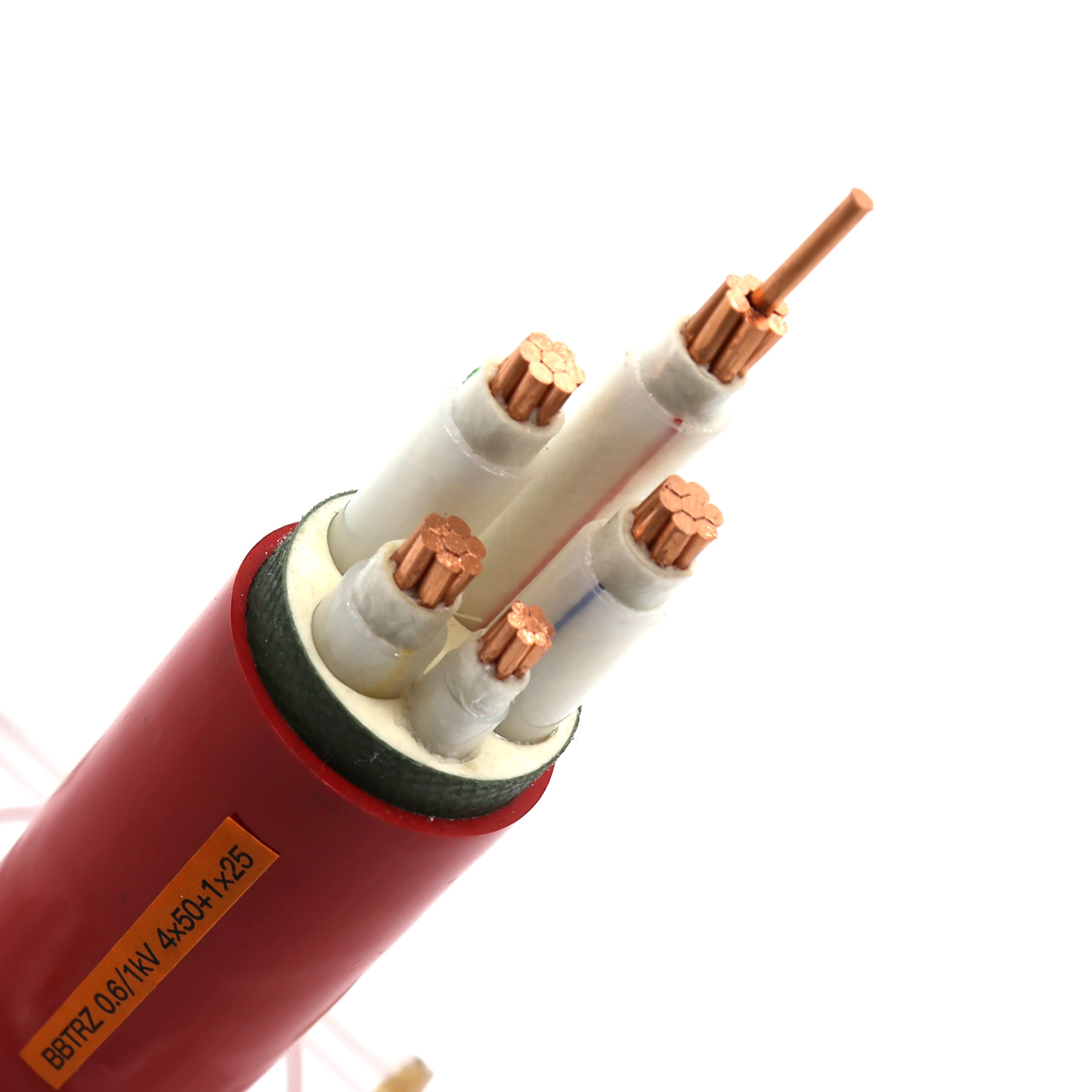

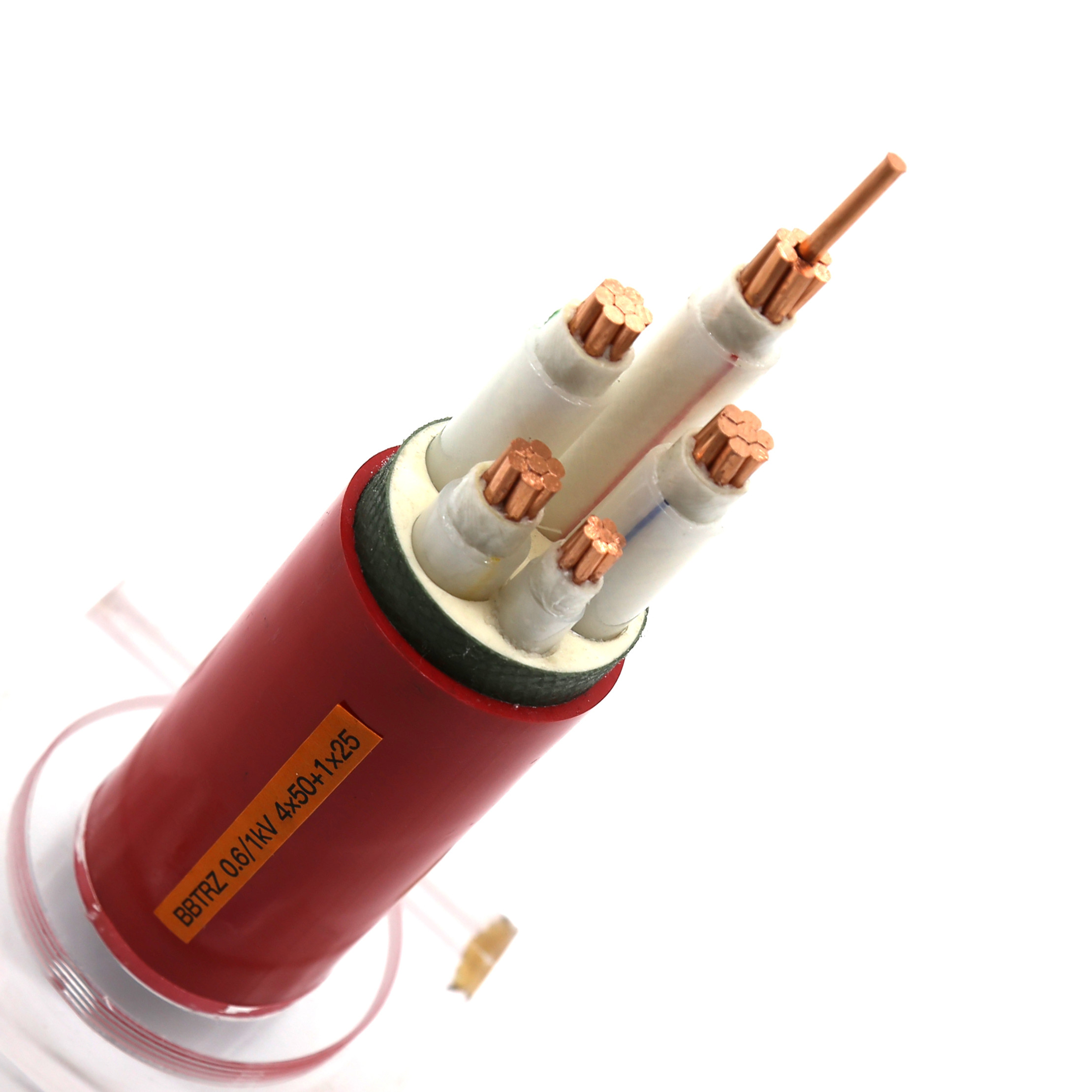

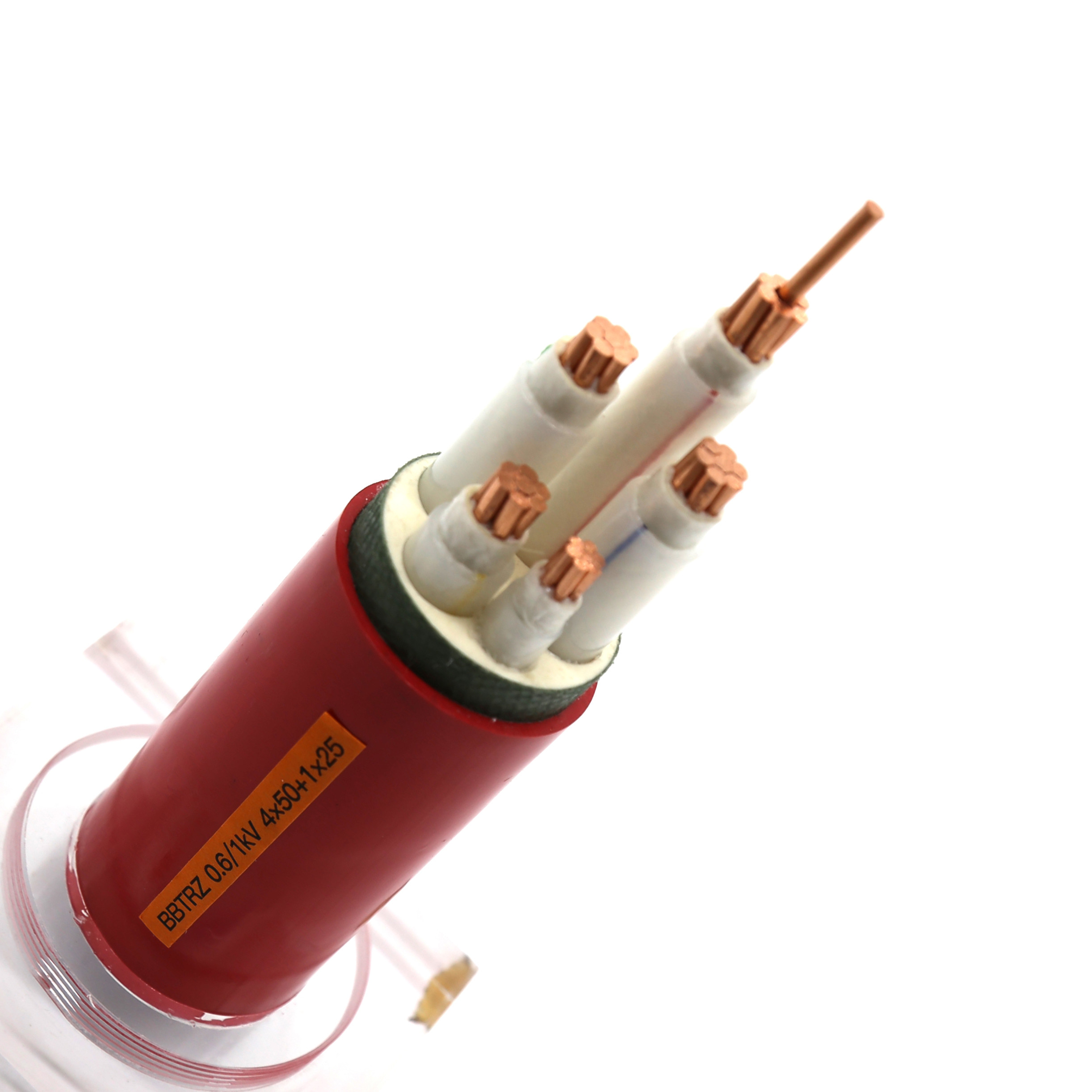

| Model: | BBTRZ | Type: | Low Voltage |
|---|---|---|---|
| Conductor: | Copper Conductor | Insulation: | Magnesium Oxide |
| Sheath: | LSZH | Voltage: | 0.6/1 KV |
| Color: | Orange | Application: | Construction |
| High Light: | 5x2.5mm2 rubber electrical cable,500V 5 core mineral insulated cable,5x2.5mm2 mineral insulated power cable |
||
1. Characteristics
2. Technical parameters
|
Nominal cross-section (mm2) |
Conductor diameter (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
O.D. (mm) |
Current ratings in air (A) |
Current ratings underground (A) |
Reference weight (kg/km) |
| 5x1.5 | 1.37 | 0.7 | 1.8 | 25.6 | 17.6 | 25.3 | 691.2 |
| 5x2.5 | 1.76 | 0.7 | 1.8 | 23.8 | 30.8 | 39.6 | 649.5 |
| 5x4 | 2.23 | 0.7 | 1.8 | 25.4 | 40.7 | 56.1 | 773.2 |
| 5x6 | 2.74 | 0.7 | 1.8 | 26.4 | 51.7 | 70.4 | 929.4 |
| 5x10 | 4.0 | 0.7 | 1.8 | 29.5 | 71.5 | 94.6 | 1280.2 |
| 5x16 | 5.0 | 0.7 | 1.8 | 32.4 | 92.4 | 121.0 | 1687.0 |
| 5x25 | 6.0 | 0.9 | 1.8 | 36.5 | 121.0 | 154.0 | 2326.5 |
| 5x35 | 7.0 | 0.9 | 1.8 | 39.5 | 148.5 | 187.0 | 2937.8 |
| 5x50 | 8.20 | 1.0 | 2.1 | 43.1 | 187.0 | 225.5 | 3808.4 |
| 5x70 | 9.90 | 1.1 | 2.1 | 48.5 | 236.5 | 275.0 | 5205.3 |
| 5x95 | 11.6 | 1.1 | 2.3 | 53.5 | 291.5 | 330.0 | 6748.5 |
| 5x120 | 13.0 | 1.2 | 2.4 | 58.1 | 341.0 | 379.5 | 8225.6 |
| 5x150 | 14.5 | 1.4 | 2.6 | 63.9 | 385.0 | 423.5 | 10076.1 |
| 5x185 | 16.2 | 1.7 | 2.8 | 69.7 | 445.5 | 478.5 | 12482.5 |
| 5x240 | 18.4 | 1.7 | 3.0 | 76.4 | 528.0 | 550.0 | 15793.8 |
| 5x300 | 20.7 | 1.8 | 3.2 | 83.6 | 610.5 | 621.5 | 19455.2 |
| 5x400 | 23.2 | 2.0 | 3.6 | 92.5 | 704.0 | 704.0 | 24720.8 |
3. Application
Product Package
5. Product standard
GB/T 34926, GB/T 13033, IEC 62702, IEC 60331, BS 6387, BS 6207.
6. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
